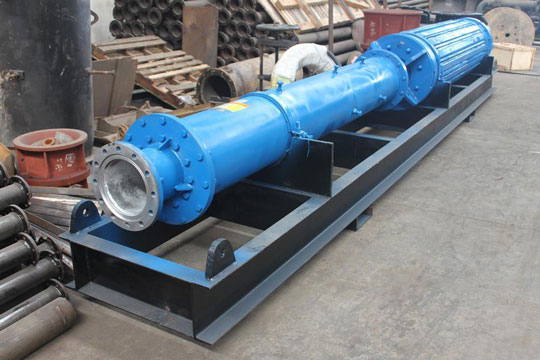

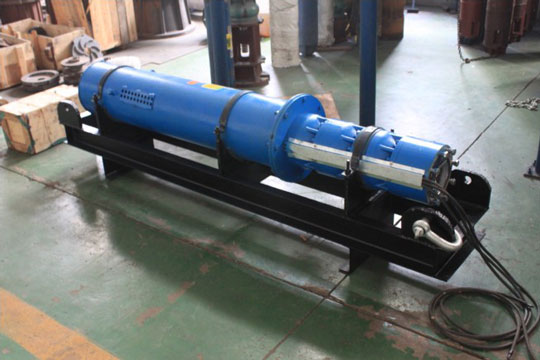

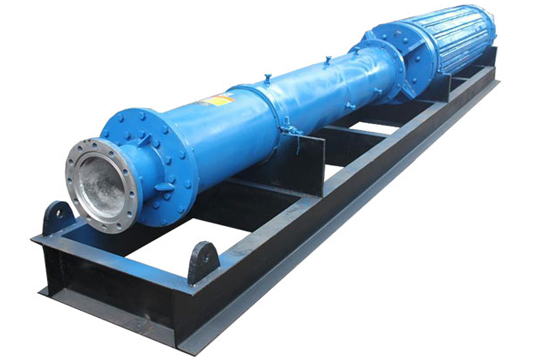

Q Extra Big Submersible Pump

Flow: 600-2200m3/h

Lift: 25-170m

Caliber: φ600~φ800mm

Power: 110-710kw

Temperate: -15-80℃

Phone:+86-180-3748-7502(WhatsApp, WeChat) E-mail:[email protected]
Follow Us:
Product Description

Q Extra Big Submersible Pump widely used in farmland irrigation, spray irrigation and water-use, industrial and civil buildings, mountain diversion and in low-lying areas dunes, urban and rural mining supply, drainage and other water conservancy facilities.

Q Extra Big Submersible Pump using condition:

(1). 380V voltage deviation is no more than ±5%,frequency is 50HZ, three -phase power deviation is no more than ±1%.
(2). Motor cavity must be filled with water.
(3). The first stage impeller of the pump should be more than 2mm below the moving water surface, pump unit should be less than 70m below the static water level.
(4). The distance from the motor bottom to well bottom must be more than 3m.
(5). Water temperature should be no more than 20°C.
(6). Sand content of the water ( by mass) should be no more than 0.01%.
(7). PH value of water 6.5-8.5.
(8). Hydrogen sulfide content of the water should be no more than 1.5mg/L.
(9). Chloride ion content of the water should be no more than 400mg/L.
(10). Water yield of water source should ensure the requirements of pump continuous working.

Q Extra Big Submersible Pump Material:

Impeller: Cast iron HT200,or stainless steel
Pump bowl: Cast iron HT200,or stainless steel,such as ss304, ss316, ss316L
Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316 and ss316L
Motor Seal: Rubber O-ring seal,mechanical seal
Motor regulating sleeve: rubber

Q Extra Big Submersible Pump Characteristics:

1. Motors and pumps assembled into one.
2. Simple structure.
3. Easy installation and removal, small area.
4. Simple using and maintenance.
5. Safe and reliable operation, no pollution to water, etc.

Technical Parameters



Model

Flow (m³/h)

Lift (m)

Power (kw)

Diameter (mm)

600Q600-34

600

34

110

600

600Q600-68

600

68

225

600

600Q600-102

600

102

315

600

600Q600-170

600

170

520

600

600Q600-136

600

136

400

600

600Q900-30

900

30

110

600

600Q900-60

900

60

225

600

600Q900-90

900

90

315

600

600Q900-120

900

120

400

600

600Q900-150

900

150

520

600

600Q1100-24

1100

24

110

600

600Q1100-48

1100

48

225

600

600Q1100-96

1100

96

400

600

600Q1100-72

1100

72

315

600

600Q1100-120

1100

120

520

600

800Q1500-35

1500

36

250

800

800Q1500-72

1500

62

500

800

800Q1500-108

1500

93

710

800

800Q2000-31

2000

31

250

800

800Q2000-93

2000

93

710

800

800Q2000-62

2000

62

500

800

800Q2200-25

2200

25

250

800

800Q2200-50

2200

50

500

800

800Q2200-75

2200

75

710

800
