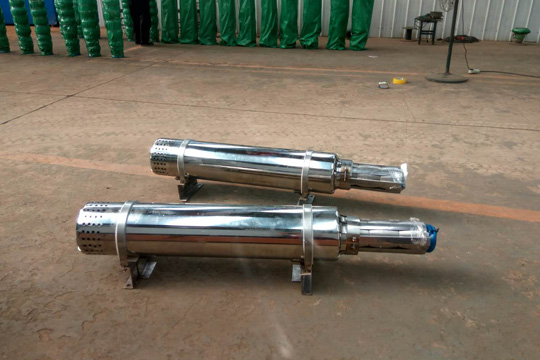

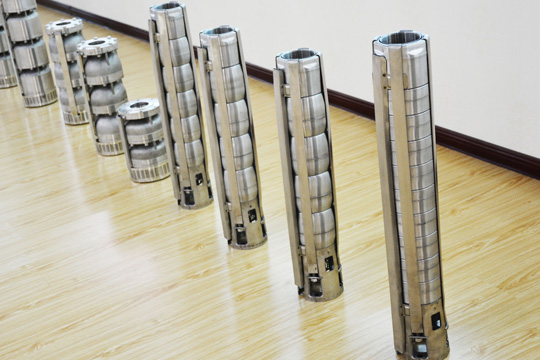

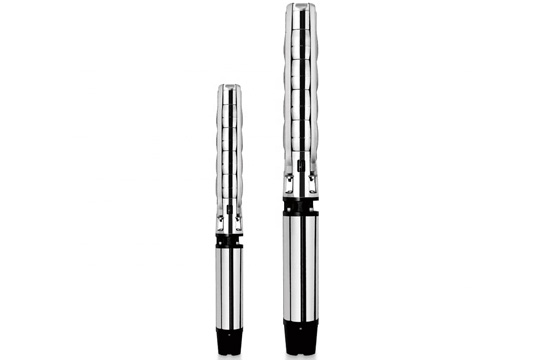

6SP Stainless steel well submersible multistage electric pump

Flow: 10-70(m3/h)

Lift： 10-300m

Caliber： <Ф141mm

Power：

Temperate： <35℃

Phone:+86-180-3748-7502(WhatsApp, WeChat) E-mail:[email protected]
Download the product manual
Follow Us:
Chat Online Leave Message
Product Description

6SP type stainless steel multistage deep well submersible pump is a new high-grade machine for getting underground water. It is widely used for water supply and discharge in industrial and mining enterprises, for farm land irrigation, for getting underground water for private use. The main parts of the pump are all made of stainless steel and copper alloy, so has such features as anti-corrosion, wear resistance, energy-saving, high efficiency and fully reliable. Besides, as it has compact structure, small and light, it is easy to maintain, transport, install and use. When used in combination with automatic energy-saving high efficiency control box, it can be protected against over temperature, short circuit, over load and under voltage, safe and reliable to use.

Application range

Water supply system
Boost
Agricultural irrigation
All kinds of industrial purposes

Working Condition

1.Solid matter in water shall not be over 0.01% (weight ratio);
2.Chemical substances content in water shall not be over 1.5mg/L;
3.Ion content in water shall not be above 400mg/L;
4.Water PH value: 6.5~8.5;
Voltage: three-phase 380V±10%, single-phase 220V±10%;
Motor power: single phase 0.37KW—2.2KW, three-phase 0.55KW—7.5KW.

Product features

1. Full lift structure
2. All stainless steel anti-corrosive structure
3. High lift, large flow, energy-saving
4. New “float type”, no axial pressure force
5. Excellent performance in pumping water with sands; impeller and discharge bowl are made of wear resistant material.
6. The pump and the motor matches well with corresponding sizes. You can assemble or change them freely.
7. Pressure balance film, can reach as deep as 120m under water.

Paramter

Motor： Max flux: 70m3/h
Accord with NEMA standard
Insulation grade: B
Protective grade: IP68
Max external diameter: Ф95mm
Max liquid temperature: 35℃

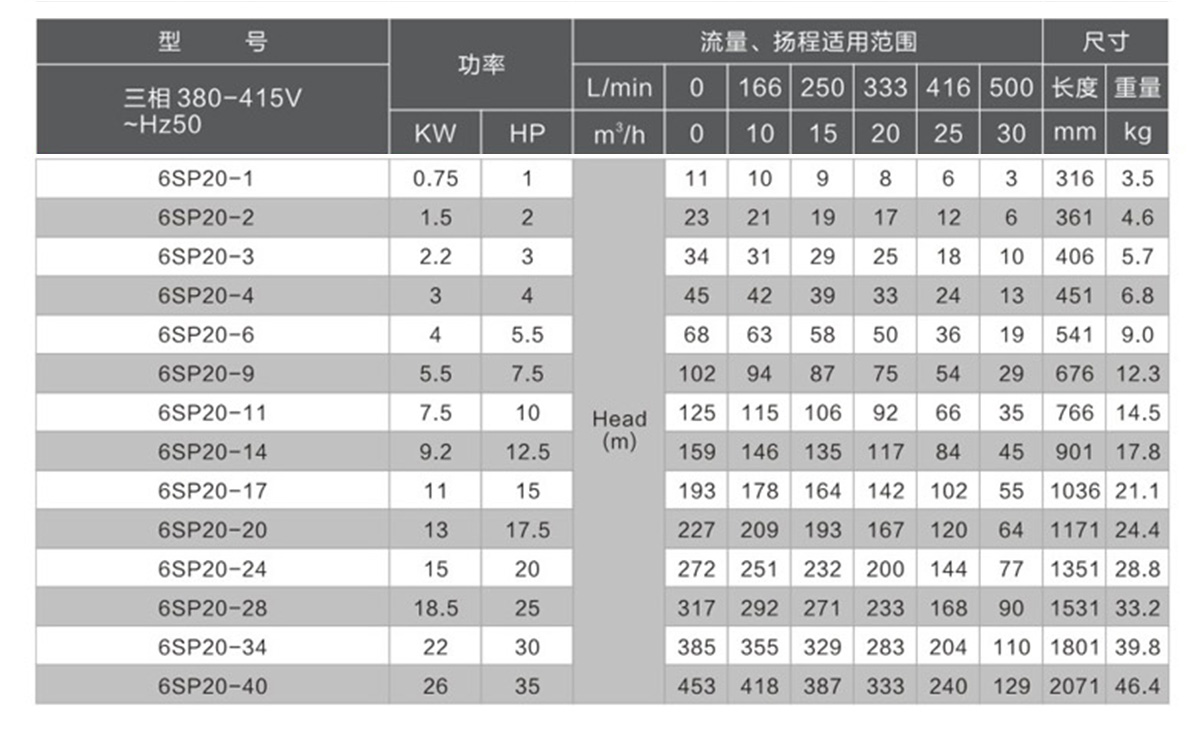

Technical Parameters



MODEL 3~380/415V 50Hz Motor power  Capacity Length(mm) ΦD（mm）
m3/h 0 3 6 9 12 15 17 21
l/min 0 50 100 150 200 250 283 350
Hp kW Head (m) Lift
6SP17-9 * 7.5 5.5 97 96 94 90 85 76 63 45 675 138
6SP17-12 10 7.5 130 128 126 120 113 102 84 60 810 138
6SP17-15 12.5 9.2 162 160 157 150 141 127 105 75 945 138
6SP17-18 15 11 195 192 188 180 170 152 126 90 1080 138
6SP17-21 18 13 227 224 220 210 198 178 147 105 1215 138
6SP17-24 20 15 260 256 251 241 226 203 168 120 1350 138
6SP17-30 25 18.5 324 320 314 301 283 254 210 150 1620 144
6SP17-36 30 22 389 384 377 361 339 305 252 180 1890 144
6SP17-43 35 26 465 459 450 431 405 364 301 215 2205 144

MODEL 3~380/415V 50Hz Motor power Capacity Length(mm) ΦD（mm）
m3/h 0 12 18 24 28 30 36
l/min 0 200 300 400 467 500 600
Hp kW H m Lift
6SP30-5 * 7.5 5.5   57 53 49 43 40 36 26 720   138
6SP30-7 10 7.5 79 74 68 60 57 50 37 900 138
6SP30-9 12.5 9.2 102 95 89 78 74 65 47 1080 138
6SP30-12 15 11 136 127 114 104 98 87 63 1350 138
6SP30-14 18 13 159 148 138 121 114 101 73 1530 138
6SP30-16 20 15 181 170 157 138 130 115 84 1710 138
6SP30-19 25 18.5 215 202 186 164 154 137 100 1980 144
6SP30-23 30 22 260 244 225 199 186 166 121 2340 144
6SP30-28 35 26 317 296 274 242 224 202 147 2790




MODEL 3~380/415V 50Hz Motor power Capacity Length(mm) ΦD（mm）
m3/h 0 24 30 36 42 46 54 66
l/min 0 400 500 600 700 767 900 1100
Hp kW Head m Lift
6SP46-4 10 7.5 52 45 42 39 36 32 26 9 630 138
6SP46-5 10 7.5 65 56 53 49 44 40 32 13 720 138
6SP46-6 12.5 9.2 78 68 63 56 52 47 37 15 810 138
6SP46-7 15 11 90 79 73 67 61 56 42 16 900 138
6SP46-8 18 13 102 90 83 77 69 62 47 18 990 138
6SP46-10 20 15 127 113 105 95 86 77 59 24 1170 138
6SP46-12 25 18.5 151 135 125 115 103 93 71 27 1350 144
6SP46-14 30 22 176 154 143 132 118 103 80 30 1530 144
6SP46-16 35 26 198 176 165 150 135 120 92 36 1710 144
6SP46-18 40 30 223 200 187 168 149 131 102 40 1890 144



MODEL 3~380/415V 50Hz Motor power Capacity Length(mm) ΦD（mm）
m3/h 0 24 36 42 48 54 60 72
l/min 0 400 600 700 800 900 1000 1200
Hp kW Head m Lift
6SP60-4 10 7.5 52 47 41 38 36 33 30 19 670 138
6SP60-5 12.5 9.2 65 58 51 47 44 41 37 23 770 138
6SP60-6 15 11 78 68 64 61 58 52 47 29 870 138
6SP60-7 18 13 91 80 71 67 62 58 53 33 970 138
6SP60-8 20 15 104 92 80 75 71 66 60 38 1070 138
6SP60-10 25 18.5 130 109 101 95 89 83 75 47 1270 144
6SP60-12 30 22 156 132 122 114 107 99 90 56 1470 144
6SP60-14 35 26   182 152 142 133 124 116 105 65 1670 144
6SP60-16 40 30   208 174 162 152 142 132 120 75 1871 144
